The Mechanical Power of the Fluted Arch
When solid paperboards bend under heavy warehouse loads, corrugated engineering takes over. Consequently, global supply chains rely on custom flute corrugated paperboard to form their protective shipping barriers. First of all, the internal wave-like fluting creates thousands of continuous architectural arches that distribute vertical crushing forces evenly. Secondly, the trapped air columns absorb sudden side impacts during transport. As a result, you achieve lightweight, cost-effective logistics containers that yield incredible structural integrity without adding unnecessary freight weight.

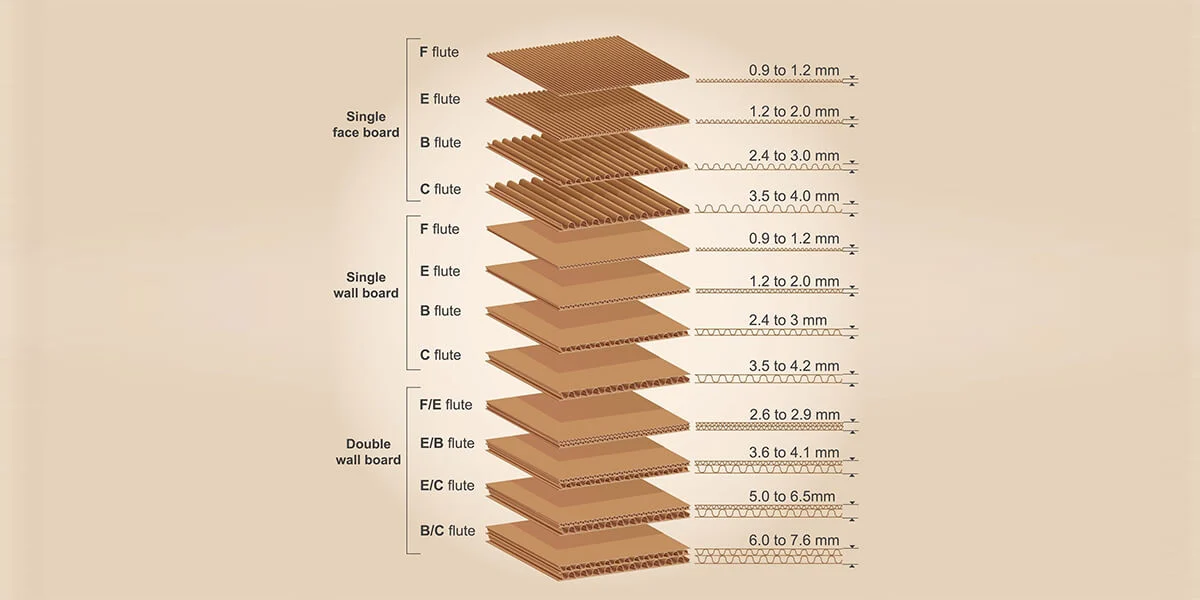

Technical Performance Matrix
Flute Profile
Material Thickness
Mechanical Edge Crush Strength
Stacking Performance
Optimal Packaging Use Case
F-Flute
0.9~1.2 mm
★★
★★
Micro-flute luxury cosmetic boxes, sleek inserts
E-Flute
1.2~2.0 mm
★★★
★★★
Standard subscription mailer boxes, retail countertops
B-Flute
2.4~3.0 mm
★★★★
★★★★
Heavy canned goods, beverage carriers, internal dividers
C-Flute
3.5~4.2 mm
★★★★
★★★★★
Standard industrial shipping master cartons, heavy freight
BC-Flute (Double Wall)
6.0~7.6 mm
★★★★★
★★★★★
HeUltra-heavy machinery parts, international sea freight

Color Options & Aesthetic Finishes

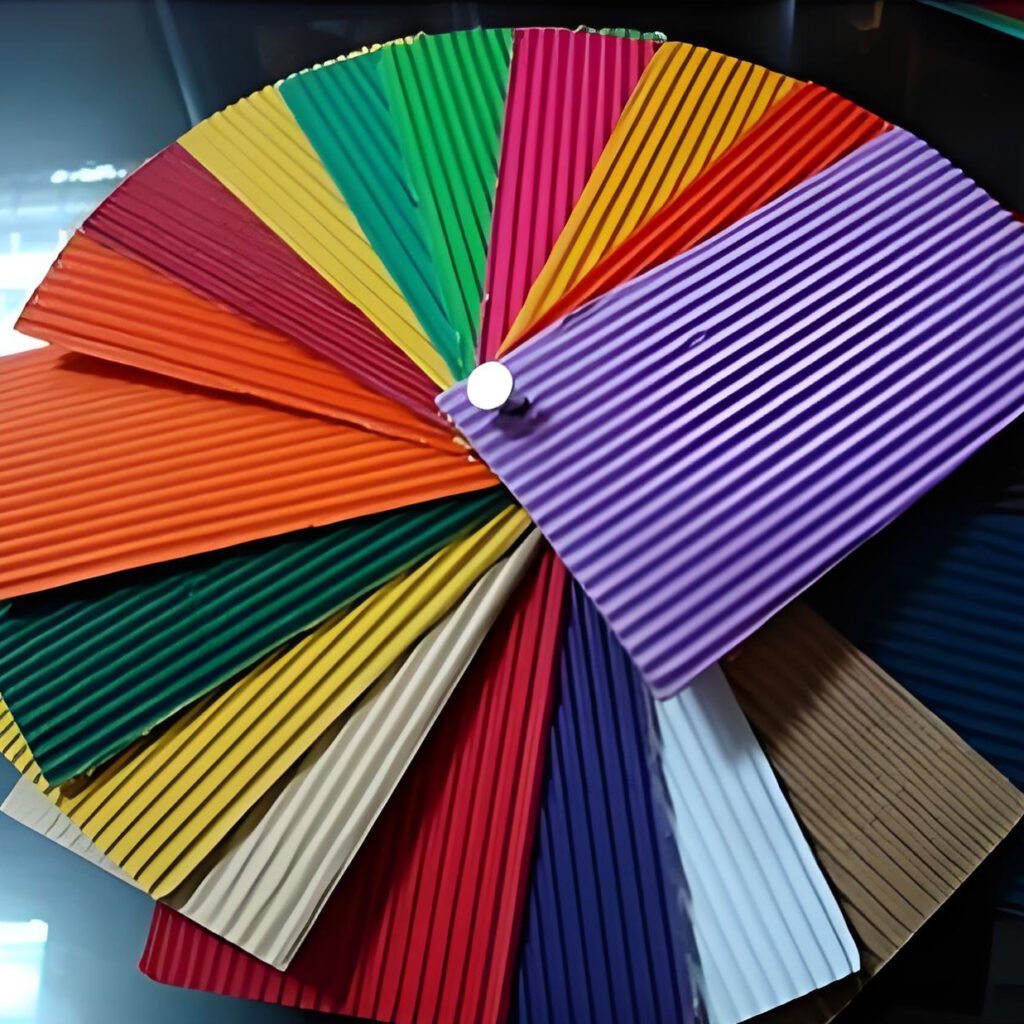

We break the stereotype that structural boxes must look boring. We supply colored corrugated cardboard panels in four distinct aesthetic bases.

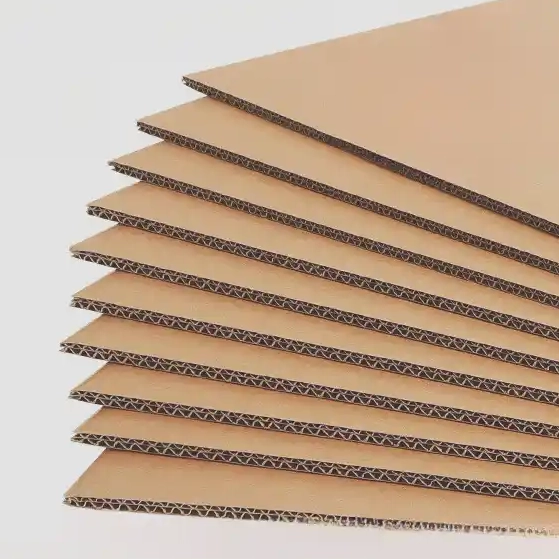

The unbleached, rustic standard. It features raw wood fibers that instantly communicate a rugged, organic, and highly sustainable brand narrative.

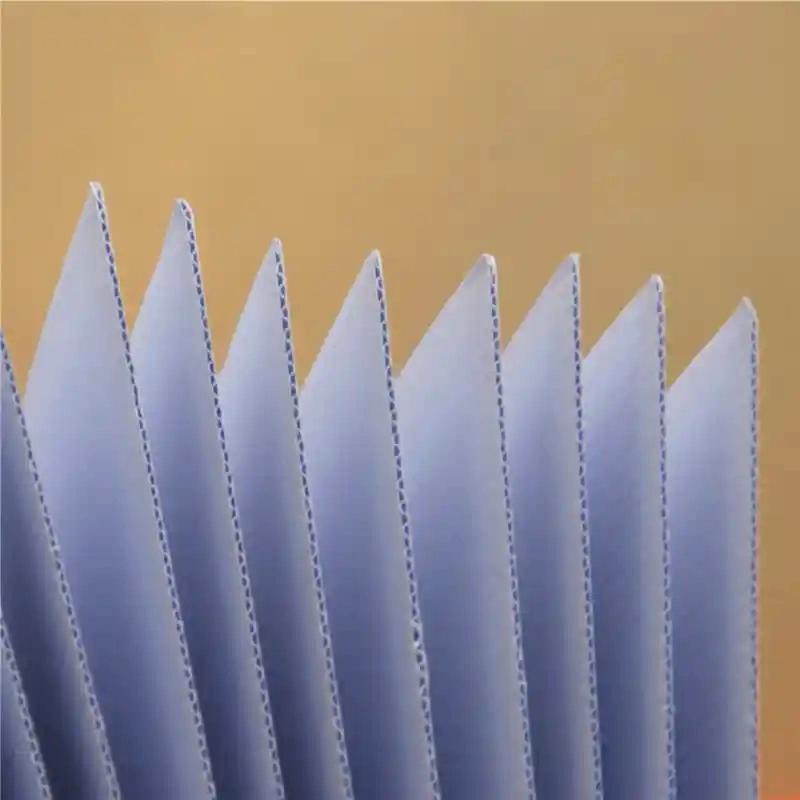

A clean, crisp foundation. Perfect for medical devices, high-end consumer goods, or brands that want vibrant, full-surface colorful printing on the interior flaps.

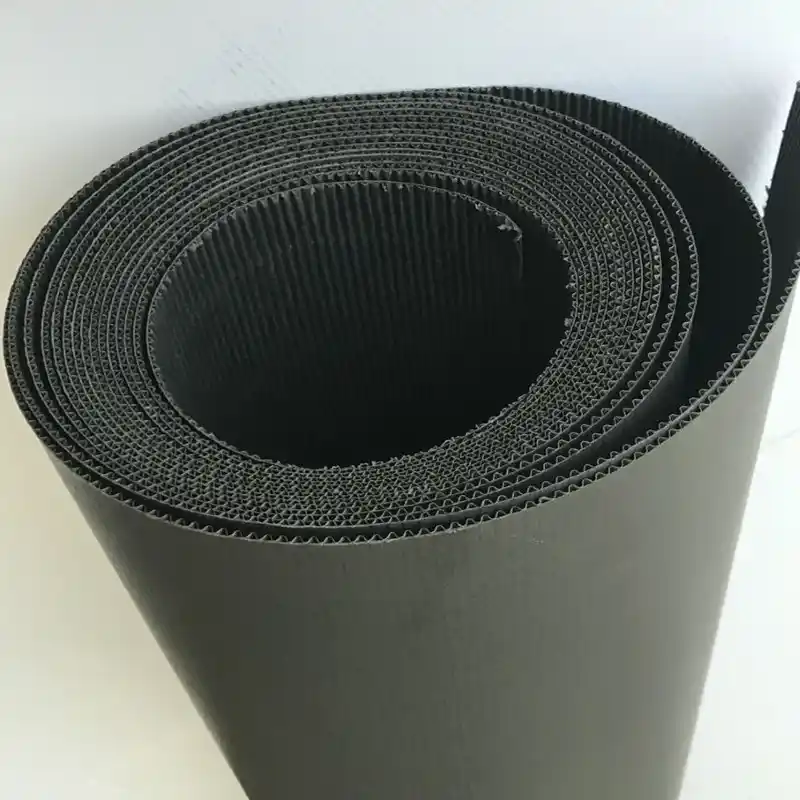

Deep, continuous obsidian color that runs entirely through the liners and internal fluting. It eliminates white lines at the edges, offering a highly premium, stealth look for luxury electronics.

Deep, continuous obsidian color that runs entirely through the liners and internal fluting. It eliminates white lines at the edges, offering a highly premium, stealth look for luxury electronics.

We laminate high-definition printed SBS paper directly over the corrugated walls. This allows your shipping containers to display photo-realistic imagery on the outside while maintaining maximum drop protection.
Target Industry Solutions

Deploy elegant F-flute or E-flute black corrugated boxes to cradle delicate glass perfume jars safely while offering a high-end, matte unboxing feel.

Ship seasonal clothing lines in bleached white corrugated mailers that repel humidity and resist tearing along the automated postal conveyor belts.

Secure heavy digital devices and sensitive screens inside custom-die-cut B-flute grid dividers that arrest internal product shifting during turbulent flights.

Utilize high-speed, self-sealing E-flute corrugated mailer boxes to streamline warehouse packing speeds while offering consumers a clean, pull-tab opening experience.
FAQ
Which corrugated flute thickness is best for direct-to-consumer subscription mailer boxes?
For standard subscription mailers, we highly recommend utilizing E-flute corrugated board (~1.5 mm thickness). Because E-flute provides a highly flat, smooth outer surface for sharp logo printing while offering excellent crush resistance. As a result, your graphics look incredibly crisp, and the box retains its sharp, rectangular shape perfectly through the postal mail stream.
What is the technical structural difference between Single Wall and Double Wall corrugated boards?
Single wall board consists of a single layer of fluted paper sandwiched between two flat linerboards. Conversely, double wall board joins two separate fluted mediums with a middle liner sheet, totaling five paper layers. Therefore, we deploy single wall for standard retail mailers and reserve double wall (like BC-flute) for heavy industrial components exceeding 15kg.
Do your colored corrugated cardboard panels lose their color or bleed when wet?
No, our premium colored panels maintain absolute color fastness. Unlike factories that spray cheap, water-soluble ink over finished boards, we utilize core-dyed pulp or apply high-performance UV-cured inks. Consequently, the rich pigments lock into the cellulose fibers permanently, ensuring the color never rubs off onto your valuable products or hands.
Can we combine a heavy-duty corrugated structure with luxury finishes like spot UV or foil stamping?
Yes, we achieve this through an engineering technique called litho-lamination. First of all, we print your intricate spot UV, embossing, or hot foils onto a separate sheet of smooth coated paper or ivory board. Secondly, our automated machinery laminates that printed sheet directly onto the raw corrugated fluting. Subsequently, you get a box with the strength of a tank and the appearance of a luxury boutique carton.
Are your wholesale corrugated board packaging sheets safe for eco-conscious markets like the EU?
Our corrugated materials are 100% compliant with strict global environmental regulations. First of all, we source our linerboards from FSC-certified sustainable timberlands. Moreover, we bind the fluted layers together using a completely non-toxic, edible cornstarch-based adhesive. Therefore, the entire container remains fully biodegradable and easily recyclable in any domestic curbside bin.
How do you measure the structural strength of custom flute corrugated paperboard?
We test structural stamina using two primary international metrics: ECT (Edge Crush Test) and BST (Bursting Strength Test). ECT measures the vertical stacking strength of the board, which tells us how many boxes can safely stack on top of each other in a shipping container. Subsequently, BST calculates the material’s resistance to rupturing or puncturing when subjected to sudden internal or external impacts.
Get a Free Packaging Consultation
Get in touch with a Gerun structural specialist to configure your packaging solution. Whether your upcoming campaign requires a specialized deep profile, corrugated paper packaging, or flat-pack engineering to reduce freight costs, we deliver accurate quotes within 24 hours. Complete the form below to claim your structural consultation and custom dieline blueprint.
